#195 Design Image Training - 11: Hoisting Mechanism

Category : Automation elements technology
December19, 2014

A hoisting mechanism is one of the typical element mechanisms of the parts supply system.This section explains the hoisting mechanism using the Bingo Game machine as an example.

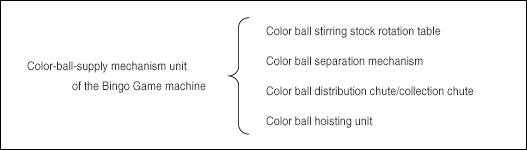

For the Bingo Game machine, the color-ball-supply mechanism unit is comprised of the following sub-units (element mechanism):

Color-ball-supply mechanism unit of the Bingo Game machine

Color-ball-supply mechanism unit of the Bingo Game machine

Color-ball-supply mechanism unit

Color ball stirring stock rotation tableThe function to stock up the game balls and stir the color balls to produce randomness for the bingo game.
Color ball separation mechanismBall separation process corresponding to the ball select operation by a player
Color ball distribution chute/collection chuteFeeding guide to distribute color balls selected and to collect all the balls at once after the game.
Color ball hoisting unitThe mechanism to restore the balls collected together to the stock rotation table.
