#124 Production Technology Improvement Course for Mechanical Designers - 8: Typical Structure of Swaging Machine

Category : Automation elements technology
August10, 2012
(1) Design points on swaging machine
1)Countermeasures on swaging head wear and deformation
2)Workability during swaging head replacement
3)Reliability of the positioning of swaged parts
4)Ample rigidity of load support structure during swaging operation
5)Operational safety

(2) Typical structure of swaging machine

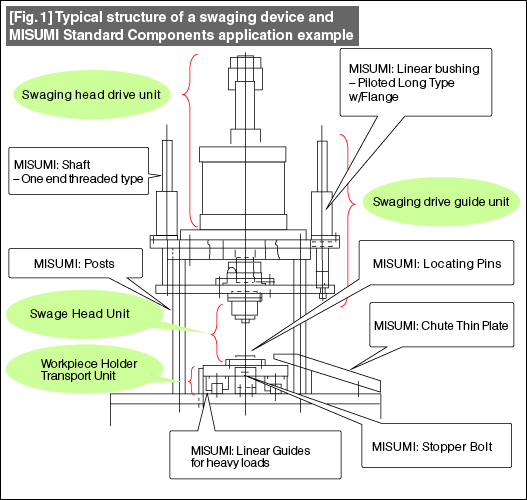

[Fig.1] shows a typical structure of a swaging device and associated various units composing the system. Various MISUMI FA Standard Components frequently used for such applications are also introduced.

【Fig.1】Example of general structure of swaging equipment using Misumi standard parts

Source： "Illustrated collection of automated mechanism" (Nikkan Kogyo Shinbum Ltd.) edited
