#047 Motion Mechanism Design - 17 : Orthogonality of XY Table Assembly - 2

Category : Drive mechanism design
June25, 2010

The flow of design drawing that enables accurate assembly work without high levels of training is organized below.


Explanation of the example

Explanation is along a~d shown above.

(a) Identify machine section(s) requiring accuracies.

Applicable section is the XY table in this case.

(b) Visualize the assembly process. (see [Fig.1])


(c) Identify parts that affect accuracies from the assembly drawing.

The parts are the 3 red lettered parts from b) above. (see [Fig.1])
 *Base
 *Y axis base mounting plate
 *Y axis base

(d) Match the assembly datum features of parts and enter into drawings the dimension specifications that enable high accuracies.

This is shown on [Fig.1]. The datum shown is referenced for specifying locations of assembling reference dowel holes.

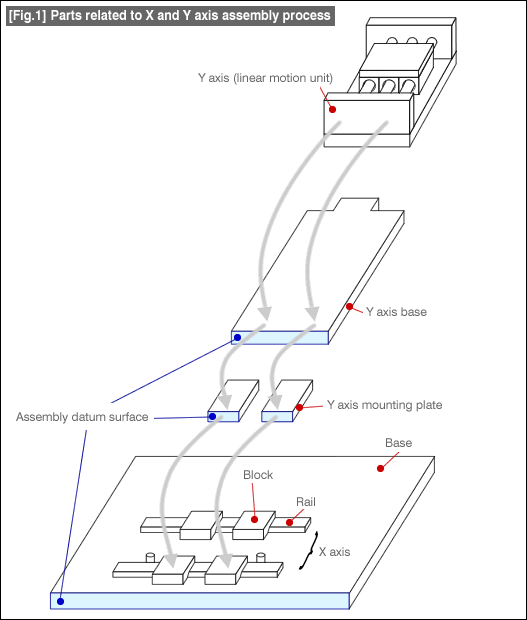

[Fig.1] Parts related to X and Y axis assembly process
