#171 Production Technology Level-up Course for Machine Designers - 7: Basic Structure of Swaging Equipment

Category : Production Technology
November22, 2013
(1) Points on swaging equipment design
（1）Countermeasures on swaging head wear and deformation
（2）Workability of swaging head replacement
（3）Positioning reliability of parts to be swaged
（4）Ample rigidity of swaging load bearing members
（5）Operation safety

(2)Basic structure of swaging equipment

Basic structure of swaging equipment and composing units are shown in [Fig.1]. Also, MISUMI FA Standard Components often used on swaging equipment are introduced.

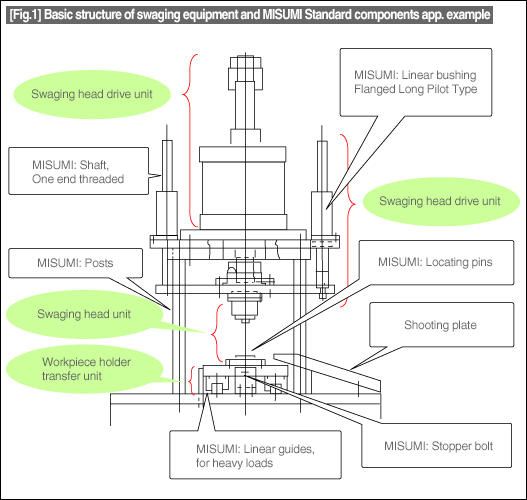

[Fig.1] Basic structure of swaging equipment and MISUMI Standard components app. example

Source: [Automated Mechanism Illustrated Collection] (Nikkan Kogyo Shinbun) revised

MISUMI USA eCatalog
