This component explains the part drawing of the P&P mechanism component.

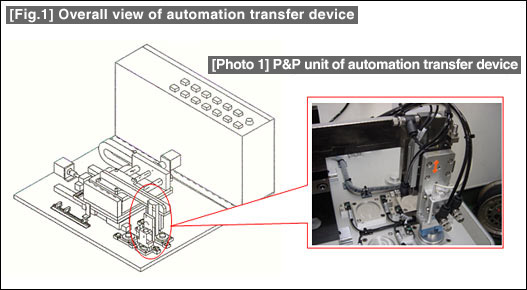

The weight of the assembled parts and actuator need to be reduced because the P&P unit parts are assembled to the XY table for high-speed drive control.For this reason, aluminum materials are frequently used for the manufactured parts parts, and reinforcement measures are incorporated into the structure design of the parts such as a long arm shape.It is also important to select a lightweight actuator.

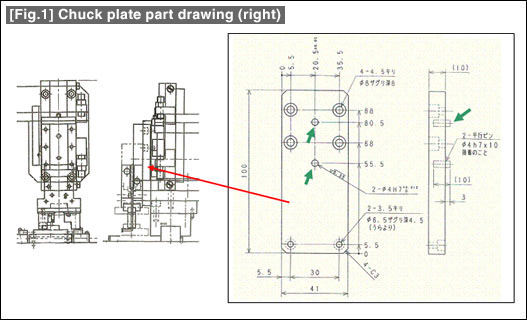

To move the chuck unit vertically, two locating pins are used for the part on which the chuck unit is mounted (chuck plate: see [Fig.2]). This part is assembled into the air slide guide with these two locating pins .
